Dometic Waeco EPS-100 12/24v Mains Adaptor

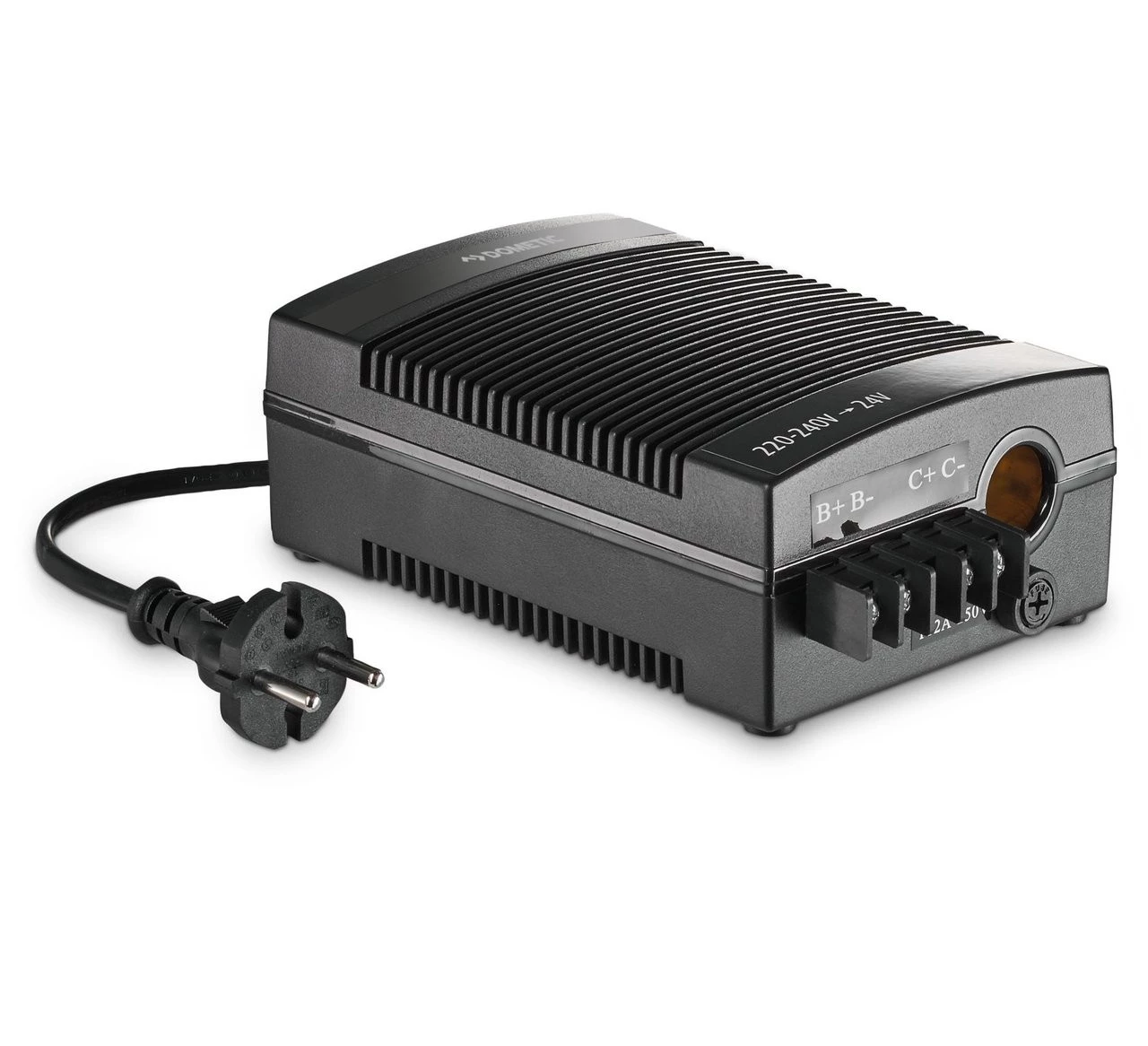

Dometic Waeco Cool Power EPS 100 Mains Adaptor

Specifically designed for connecting the Dometic Waeco COOLFREEZE CDF18 and CDF 25 to the mains, either at home or work or when hooked up on site.

Input Voltages 240 Volts mains and 12 or 24 volt DC. Output 25 Volts at 100 watts or 4 amps. The compressor cooling units are even more efficient on 24 volts and as a result the Dometic Waeco EPS 100 provides that voltage.

The 24 volts can not run back through the unit, so no damage can occur to 12 volt equipment that you have fitted in your vehicle! When permanently connected to mains this unit features mains priority, automatically switching to mains when it’s detected and back to low voltage when hook up is lost or disconnected.

Also suitable for for COOLMATIC, MDC, and CR compressor coolers, as well as the CB36 and 40, although the MPS-35 can be used as well.

Technical Specifications:

Dimensions:

65 x 115 x 185 mm (H x W x D)

Approximate Weight:

0.7 kg

Input Voltage:

AC 230 V

Output Voltage:

24 V

Output Current:

4.00 A

Input Frequency:

50/60 Hz

IP Class:

IP 20
